2026-06-06
Introduction
Phytophthora cinnamomi (Pc) is an oomycete pathogen responsible for one of the most widespread and destructive plant diseases in the world. It causes root rot in thousands of susceptible plant species and has been listed among the 100 worst invasive species globally by the IUCN. Its spread is driven by four main dispersal mechanisms:
- Soil water — zoospores and mycelium are transported through the soil matrix following subsurface water flow paths.
- Root-to-root contact — mycelium grows directly from the root system of an infected tree into adjacent roots of susceptible hosts.
- Surface water — zoospores are carried by overland flow along streams, wetlands, and flooded areas.
- Animal movement — livestock, wild boar, and other animals mechanically transport infested soil on their hooves, fur, or digestive tract.
The phytorisk package models each mechanism separately and combines the outputs into an ensemble invasion risk surface. This tutorial walks through a complete analysis using the sample data bundled with the package.
Note
To install the package and run this tutorial on your own machine, follow these instructions.
Sample Data
The package ships with sample spatial data for the Tejera study area — a forest stand where Pc presence has been confirmed. Load all inputs upfront:
A quick look at the study area and infection foci:
Code

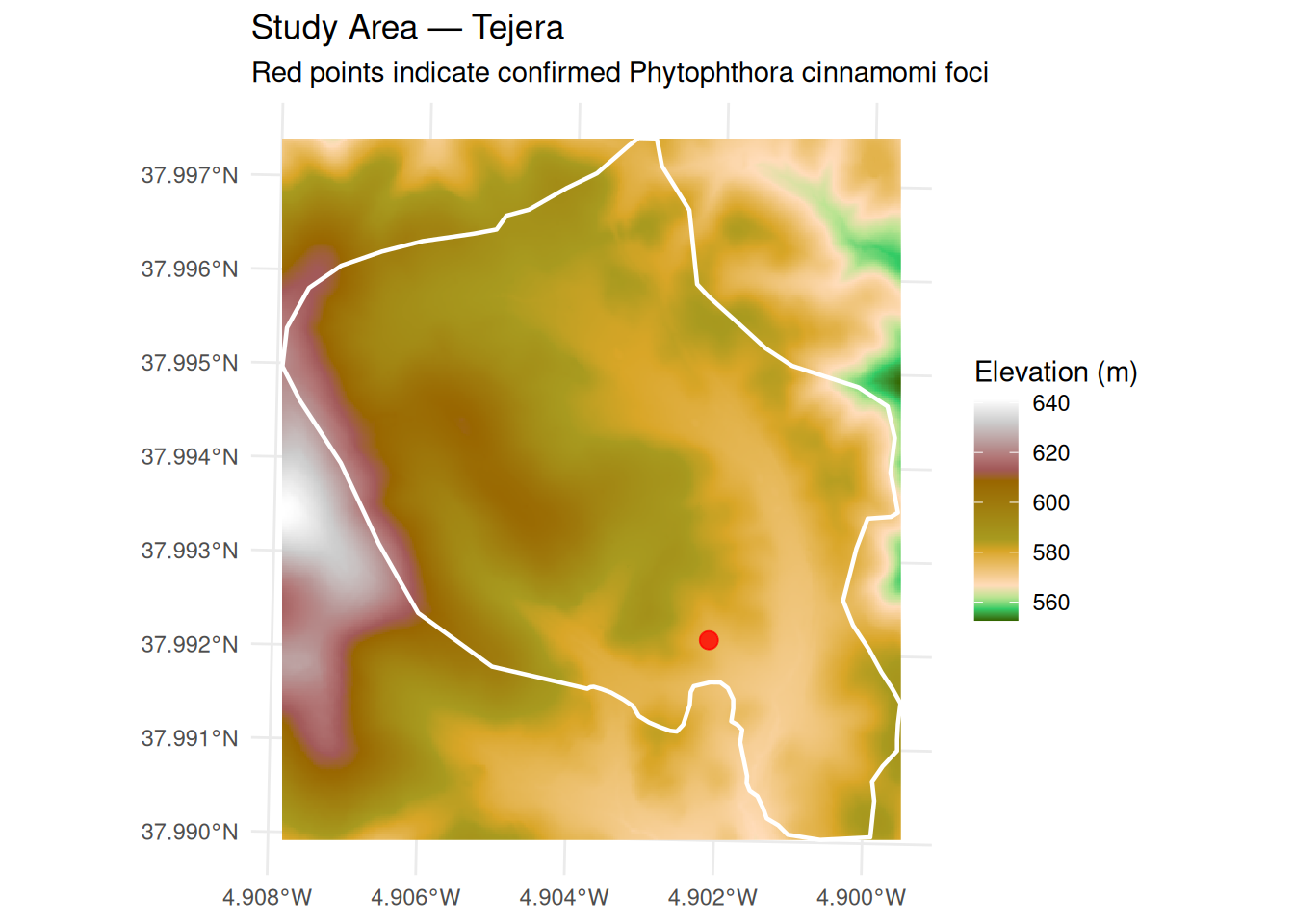

ggplot() +
geom_spatraster(data = dem_sr) +
scale_fill_hypso_c(
name = "Elevation (m)",
na.value = "transparent"
) +
geom_sf(
data = aoi_sf,
fill = NA,
color = "white",
linewidth = 0.8
) +
geom_sf(
data = poi_sf,
color = "red",
size = 3,
shape = 21,
fill = "red",
alpha = 0.8
) +
labs(
title = "Study Area — Tejera",
subtitle = "Red points indicate confirmed Phytophthora cinnamomi foci",
x = NULL, y = NULL
) +
theme_minimal() +
theme(legend.position = "right")
Dispersal Mechanisms
1. Soil Water (mec_soilwater)
Phytophthora cinnamomi produces biflagellate zoospores that swim actively in the soil water film. Under wet or intermediate moisture conditions, the inoculum follows the same subsurface flow paths determined by local topography. The function derives flow direction and accumulation from the DEM using the D8 algorithm, then traces the wet front downstream from each infection focus.
The th argument sets the flow-accumulation threshold used to delineate streams (default: 100 contributing cells). The result is a two-layer SpatRaster: mec_soilwater (binary risk) and streams (delineated drainage network).
mec_soilwater_sr <- mec_soilwater(dem_sr, poi_sf, th = 100)
#> Loading required namespace: flowdem
#> ℹ Filling DEM...
#> ✔ DEM filled [152ms]
#>
#> ℹ Filling basins...
#> ✔ Basins filled [73ms]
#>
#> ℹ Removing depressions...
#> ✔ Depressions removed [94ms]
#>
#> ℹ Filling depressions...
#> ✔ Depressions filled [57ms]
#>
#> ℹ Getting flow directions...
#> ✔ Flow directions [35ms]
#>
#> ℹ Calculating flow accumulation...
#> ✔ Flow accumulation calculated [38ms]
#>
#> ℹ Delineating streams...
#> ✔ Streams delineated [20ms]
#>
#> ℹ Determining the wet front
#> ✔ Wet front determined [7.3s]
#>
mec_soilwater_sr
#> class : SpatRaster
#> size : 415, 366, 2 (nrow, ncol, nlyr)
#> resolution : 2, 2 (x, y)
#> extent : 332469, 333201, 4206413, 4207243 (xmin, xmax, ymin, ymax)
#> coord. ref. : ETRS89 / UTM zone 30N (EPSG:25830)
#> source(s) : memory
#> varnames :
#> dem
#> names : mec_soilwater, streams
#> min values : 0, 0
#> max values : 1, 1Code

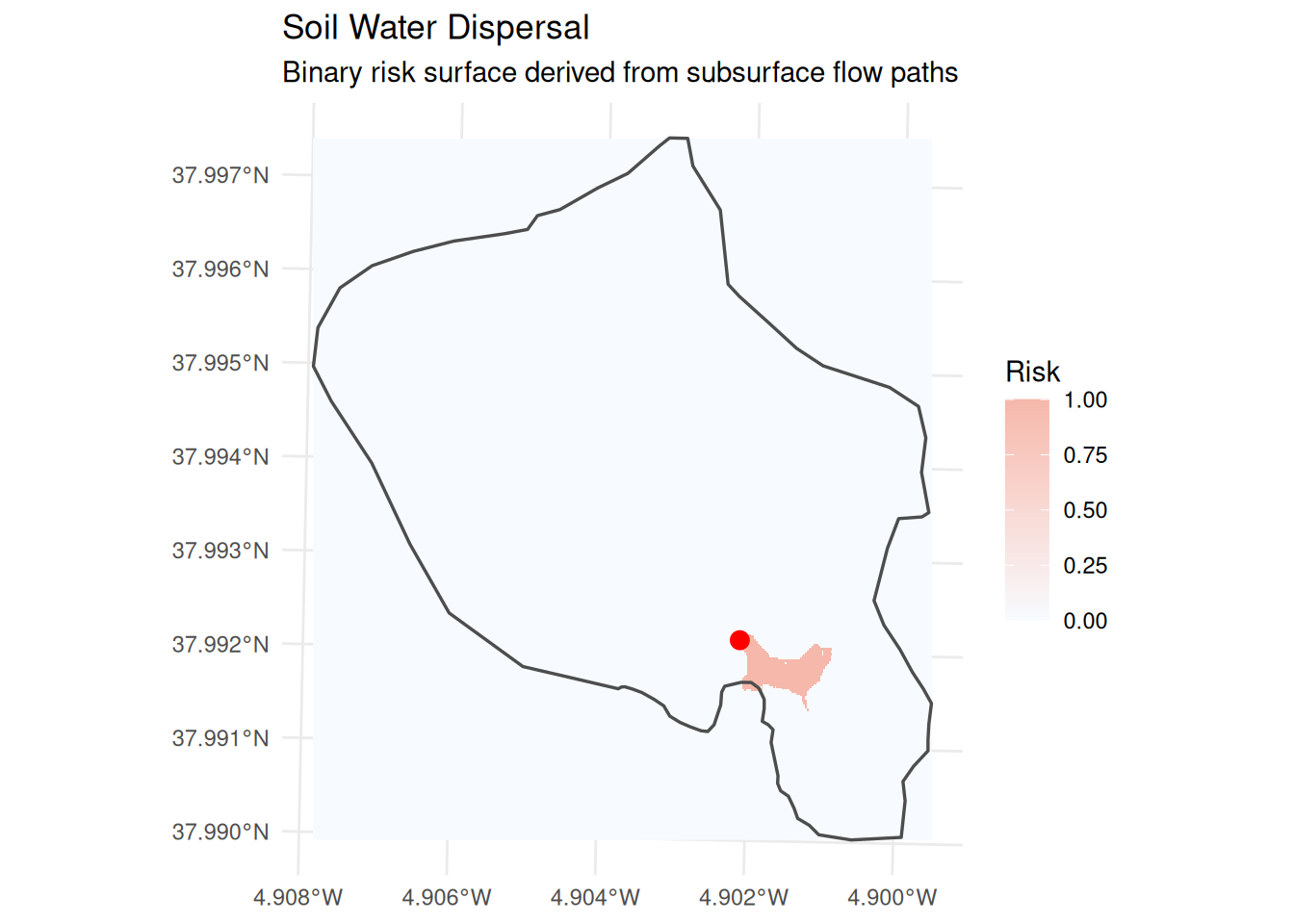

ggplot() +
geom_spatraster(data = mec_soilwater_sr["mec_soilwater"]) +
geom_sf(data = aoi_sf, fill = NA, color = "grey30", linewidth = 0.6) +
geom_sf(data = poi_sf, color = "red", size = 3) +
scale_fill_gradient(
low = "#F7FBFF",
high = "#F5B8AB",
na.value = "transparent",
name = "Risk"
) +
labs(
title = "Soil Water Dispersal",
subtitle = "Binary risk surface derived from subsurface flow paths",
x = NULL, y = NULL
) +
theme_minimal()
2. Root-to-Root Contact (mec_rootcontact)
When tree roots from an infected individual come into physical contact with the roots of a neighbouring host, mycelium can grow directly across the junction. This mechanism depends entirely on spatial tree continuity: if a gap exists between the crown projections of adjacent trees (i.e., no pixel-to-pixel contact), the infection cannot spread via this pathway.
The function uses a 3×3 focal window to identify connected tree-cover pixels, then applies a flood-fill algorithm from each focus to trace all pixels that are reachable through continuous root contact within the study area.
mec_rootcontact_sr <- mec_rootcontact(trees_sr, aoi_sf, poi_sf)
#> ℹ Preparing tree data...
#> ✔ Tree data prepared [533ms]
#>
#> ℹ Finding root-to-root contact...
#> ✔ Finished [4.1s]
#>
mec_rootcontact_sr
#> class : SpatRaster
#> size : 415, 366, 1 (nrow, ncol, nlyr)
#> resolution : 2, 2 (x, y)
#> extent : 332469, 333201, 4206413, 4207243 (xmin, xmax, ymin, ymax)
#> coord. ref. : ETRS89 / UTM zone 30N (EPSG:25830)
#> source(s) : memory
#> varname : trees
#> name : mec_rootcontact
#> min value : 0
#> max value : 1

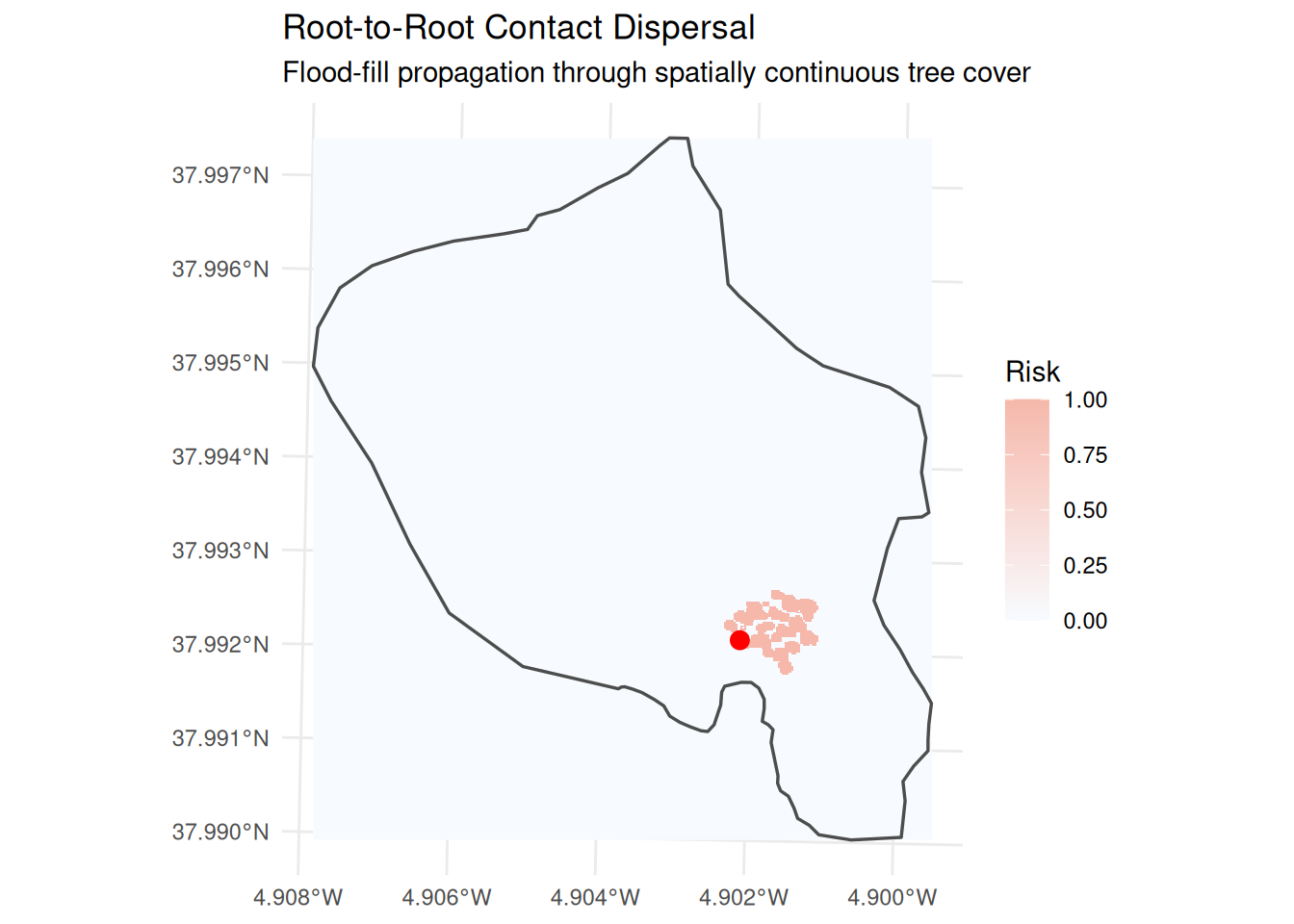

ggplot() +
geom_spatraster(data = mec_rootcontact_sr) +
geom_sf(data = aoi_sf, fill = NA, color = "grey30", linewidth = 0.6) +
geom_sf(data = poi_sf, color = "red", size = 3) +
scale_fill_gradient(
low = "#F7FBFF", high = "#F5B8AB",
na.value = "transparent",
name = "Risk"
) +
labs(
title = "Root-to-Root Contact Dispersal",
subtitle = "Flood-fill propagation through spatially continuous tree cover",
x = NULL, y = NULL
) +
theme_minimal()
3. Surface Water (mec_surfacewater)
When the soil water front (Mechanism 1) reaches a stream or wetland, zoospores enter the surface drainage network and are carried downstream. The function identifies the nearest surface water body to the infection focus and traces all connected surface water features. Wetlands are detected using the Topographic Wetness Index (TWI; pixels above the 90th percentile), which is combined with the drainage network from mec_soilwater.
This function requires the output of mec_soilwater() as an input, so always run that first.
mec_surface_lst <- mec_surfacewater(dem_sr, mec_soilwater_sr, poi_sf, buffer = 50)
#> ℹ Calculating natural drainage network...
#> ✔ Natural drainage network calculated [318ms]
#>
#> ℹ Identifying surface water close to foci...
#> ✔ Surface water close to foci identified [45ms]
#>
#> ℹ Finding connected pixels...
#> ✔ Finished [28.3s]
#>
## the result is a list: the risk raster and the surface water polygon
names(mec_surface_lst)
#> [1] "mec_surfacewater" "surface_water"Code

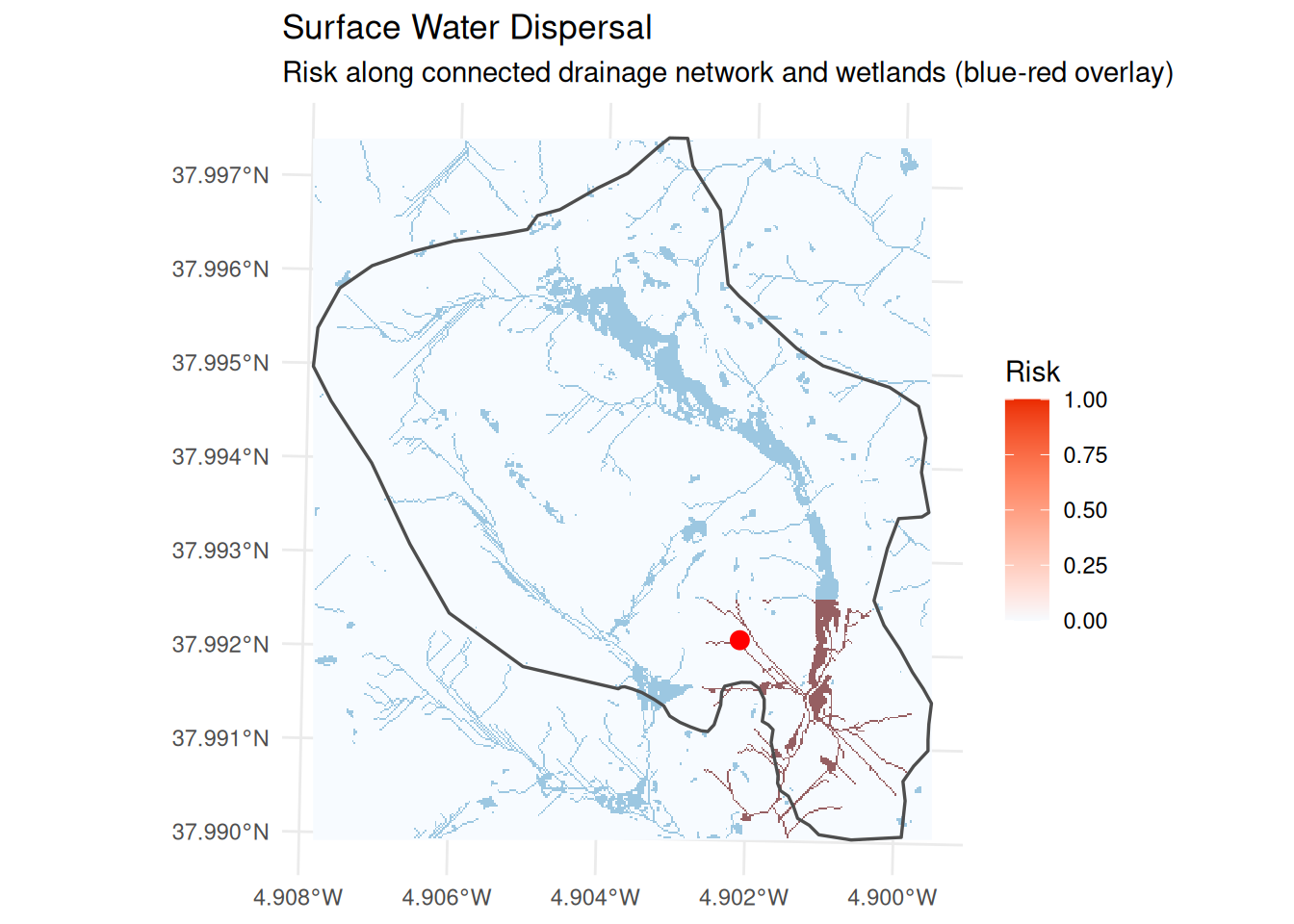

ggplot() +
geom_spatraster(data = mec_surface_lst$mec_surfacewater) +
geom_sf(data = mec_surface_lst$surface_water,
fill = "#4393C3", color = NA, alpha = 0.5) +
geom_sf(data = aoi_sf, fill = NA, color = "grey30", linewidth = 0.6) +
geom_sf(data = poi_sf, color = "red", size = 3) +
scale_fill_gradient(
low = "#F7FBFF", high = "#eb2b00",
na.value = "transparent",
name = "Risk"
) +
labs(
title = "Surface Water Dispersal",
subtitle = "Risk along connected drainage network and wetlands (blue-red overlay)",
x = NULL, y = NULL
) +
theme_minimal()
4. Animal-Mediated Dispersal (mec_zoospread)
Animals — particularly wild boar and livestock — can mechanically transport Pc-infested soil on their hooves or fur. The function simulates animal trajectories using a random-walk model: each animal starts from a random position within the study area and moves step-by-step towards a randomly selected surface-water feature (the ecological attractant). Trajectories that pass within dist metres of an infection focus are considered contaminated and contribute to the risk surface.
Key parameters:
| Parameter | Description | Default |
|---|---|---|
n_animals |
Number of simulated animals per iteration | 5 |
n_steps |
Steps per trajectory | 100 |
pixel_size |
Movement distance per step (in map units) | 1 |
n_iter |
Number of independent simulation runs | 10 |
dist |
Max distance from POI for a trajectory to count (m) | 5 |
Note
This is an optional, stochastic module. Increase
n_iterfor more stable results; the function returnsNULLif no trajectory falls withindistmetres of the focus.
mec_zoospread_sr <- mec_zoospread(
aoi = aoi_sf,
poi = poi_sf,
mec_surfacewater = mec_surface_lst,
n_animals = 10,
n_steps = 50,
pixel_size = 1,
n_iter = 5,
dist = 10
)
#>
#> ── Starting animal movement simulation ──
#>
#> Simulating trajectories ■■■■■■■■■■■■■ 40% | ETA: 43s
#> Simulating trajectories ■■■■■■■■■■■■■■■■■■■ 60% | ETA: 38s
#> Simulating trajectories ■■■■■■■■■■■■■■■■■■■■■■■■■ 80% | ETA: 21s
#> Simulating trajectories ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ 100% | ETA: 0s
#> ✔ Simulation completed. 5 trajectories generated.
#> ℹ Preparing results
#> ✔ Success [58ms]
#>
mec_zoospread_sr
#> class : SpatRaster
#> size : 415, 366, 1 (nrow, ncol, nlyr)
#> resolution : 2, 2 (x, y)
#> extent : 332469, 333201, 4206413, 4207243 (xmin, xmax, ymin, ymax)
#> coord. ref. : ETRS89 / UTM zone 30N (EPSG:25830)
#> source(s) : memory
#> varname : dem
#> name : mec_zoospread
#> min value : 0
#> max value : 1Code

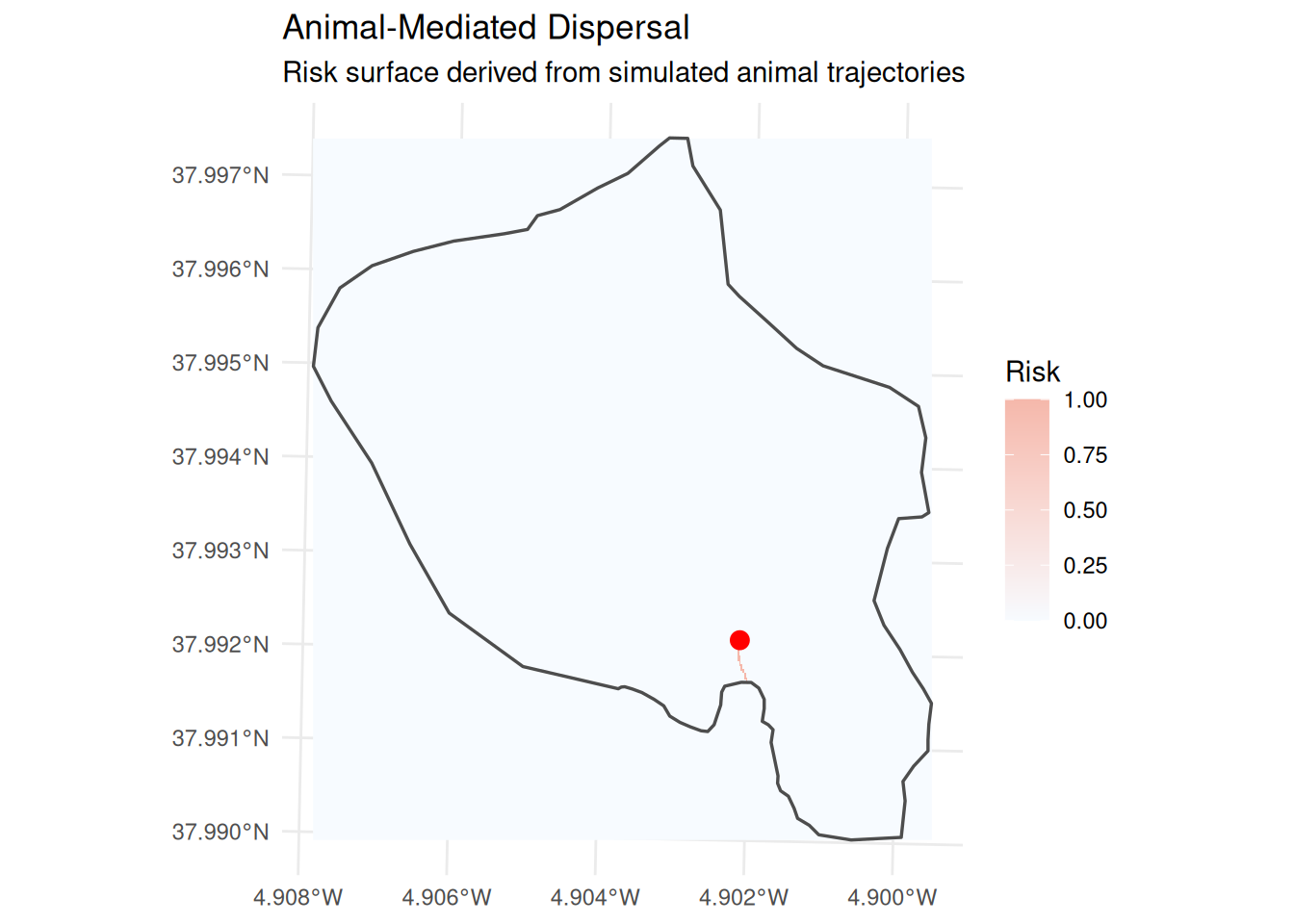

ggplot() +
geom_spatraster(data = mec_zoospread_sr) +
geom_sf(data = aoi_sf, fill = NA, color = "grey30", linewidth = 0.6) +
geom_sf(data = poi_sf, color = "red", size = 3) +
scale_fill_gradient(
low = "#F7FBFF", high = "#F5B8AB",
na.value = "transparent",
name = "Risk"
) +
labs(
title = "Animal-Mediated Dispersal",
subtitle = "Risk surface derived from simulated animal trajectories",
x = NULL, y = NULL
) +
theme_minimal()
Ensemble Risk
The individual mechanism outputs are combined into a single invasion risk surface using phytorisk_ensemble(). By default, equal weights are assigned to each active mechanism:
\[ \text{Risk} = \sum_{i=1}^{n} w_i \cdot \text{Mec}_i, \quad w_i = \frac{1}{n} \]
You can override this with a custom numeric vector that sums to 1. Here we use equal weights across all four mechanisms, then compare with a scenario that emphasises root-to-root contact and soil water pathways.
## equal weights (default)
ensemble_equal_sr <- phytorisk_ensemble(
mec_soilwater = mec_soilwater_sr,
mec_rootcontact = mec_rootcontact_sr,
mec_surfacewater = mec_surface_lst,
mec_zoospread = mec_zoospread_sr
)
ensemble_equal_sr
#> class : SpatRaster
#> size : 415, 366, 1 (nrow, ncol, nlyr)
#> resolution : 2, 2 (x, y)
#> extent : 332469, 333201, 4206413, 4207243 (xmin, xmax, ymin, ymax)
#> coord. ref. : ETRS89 / UTM zone 30N (EPSG:25830)
#> source(s) : memory
#> name : ensemble_risk
#> min value : 0
#> max value : 0.75
## expert-informed weights: emphasise root contact and soil water
ensemble_weighted_sr <- phytorisk_ensemble(
mec_soilwater = mec_soilwater_sr,
mec_rootcontact = mec_rootcontact_sr,
mec_surfacewater = mec_surface_lst,
mec_zoospread = mec_zoospread_sr,
weights = c(0.35, 0.35, 0.20, 0.10)
)Code
ggplot() +
geom_spatraster(data = ensemble_equal_sr) +
geom_sf(data = aoi_sf, fill = NA, color = "white", linewidth = 0.6) +
geom_sf(data = poi_sf, color = "white", size = 3, shape = 21,
fill = "white", stroke = 1.2) +
scale_fill_viridis_c(
option = "magma",
name = "Risk (0–1)",
na.value = "transparent",
limits = c(0, 1)
) +
labs(
title = expression(italic("Phytophthora cinnamomi") ~ "— Ensemble Risk"),
subtitle = "Equal-weight combination of four dispersal mechanisms",
x = NULL, y = NULL
) +
theme_minimal() +
theme(legend.position = "right")
Smoothing the Result
Because each dispersal mechanism produces a binary raster (0 = no risk, 1 = risk), the raw ensemble surface has hard edges. Applying a Gaussian focal filter replaces each pixel value with a weighted average of its neighbourhood, where the weights decay with distance following a normal distribution. This produces a continuous risk gradient that better reflects the spatial uncertainty inherent in each mechanism and makes the final map more interpretable.
The kernel is controlled by two parameters:
-
size— the width (and height) of the neighbourhood window in pixels. A value of 5 means each output pixel is influenced by a 5×5 block of input pixels. -
sigma(\(\sigma\)) — the standard deviation of the Gaussian, expressed in pixels. Larger values spread the influence further from the centre, producing a smoother surface at the cost of spatial precision.
The weights \(w_{ij}\) at row \(i\), column \(j\) of the kernel are:
\[ w_{ij} = \frac{1}{Z} \exp\!\left(-\frac{(i - c)^2 + (j - c)^2}{2\,\sigma^2}\right) \]
where \(c\) is the centre index and \(Z\) is a normalisation constant that ensures the weights sum to 1. The normalised kernel is then passed to terra::focal() with fun = "sum", which is equivalent to a weighted mean.
## Function to create a Gaussian kernel
gaussian_kernel <- function(size, sigma) {
k <- floor(size / 2)
mat <- matrix(0, size, size)
for (i in 1:size) for (j in 1:size) {
mat[i, j] <- exp(-((i - k - 1)^2 + (j - k - 1)^2) / (2 * sigma^2))
}
mat / sum(mat)
}
## Generate a 5×5 Gaussian kernel (sigma = 2) and apply focal smoothing
w <- gaussian_kernel(size = 5, sigma = 2)
ensemble_smooth_sr <- focal(ensemble_equal_sr, w = w, fun = "sum", na.rm = TRUE)Code

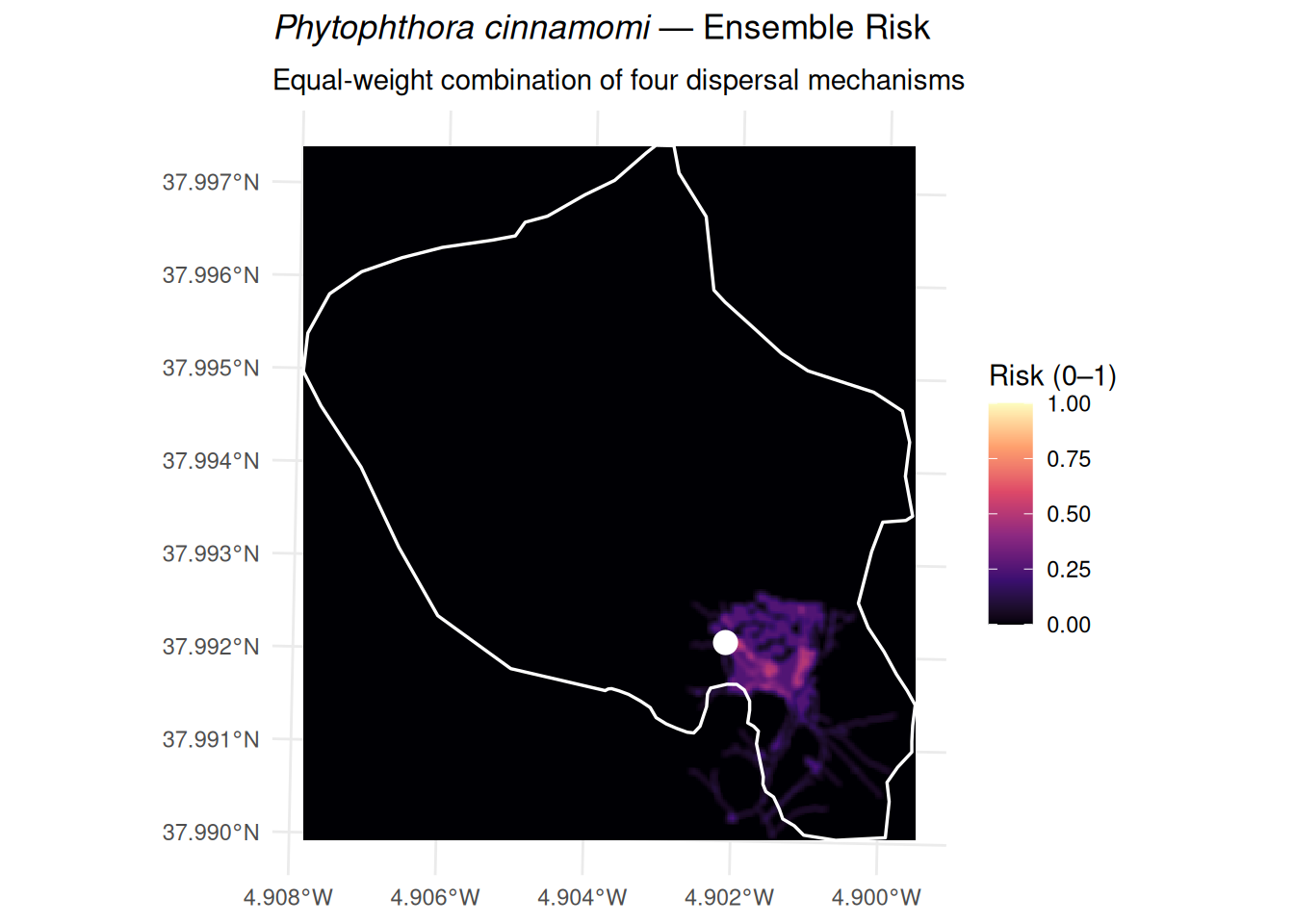

ggplot() +
geom_spatraster(data = ensemble_smooth_sr) +
geom_sf(data = aoi_sf, fill = NA, color = "white", linewidth = 0.6) +
geom_sf(data = poi_sf, color = "white", size = 3, shape = 21,
fill = "white", stroke = 1.2) +
scale_fill_viridis_c(
option = "magma",
name = "Risk (0–1)",
na.value = "transparent",
limits = c(0, 1)
) +
labs(
title = expression(italic("Phytophthora cinnamomi") ~ "— Ensemble Risk"),
subtitle = "Equal-weight combination of four dispersal mechanisms",
x = NULL, y = NULL
) +
theme_minimal() +
theme(legend.position = "right")
